Description

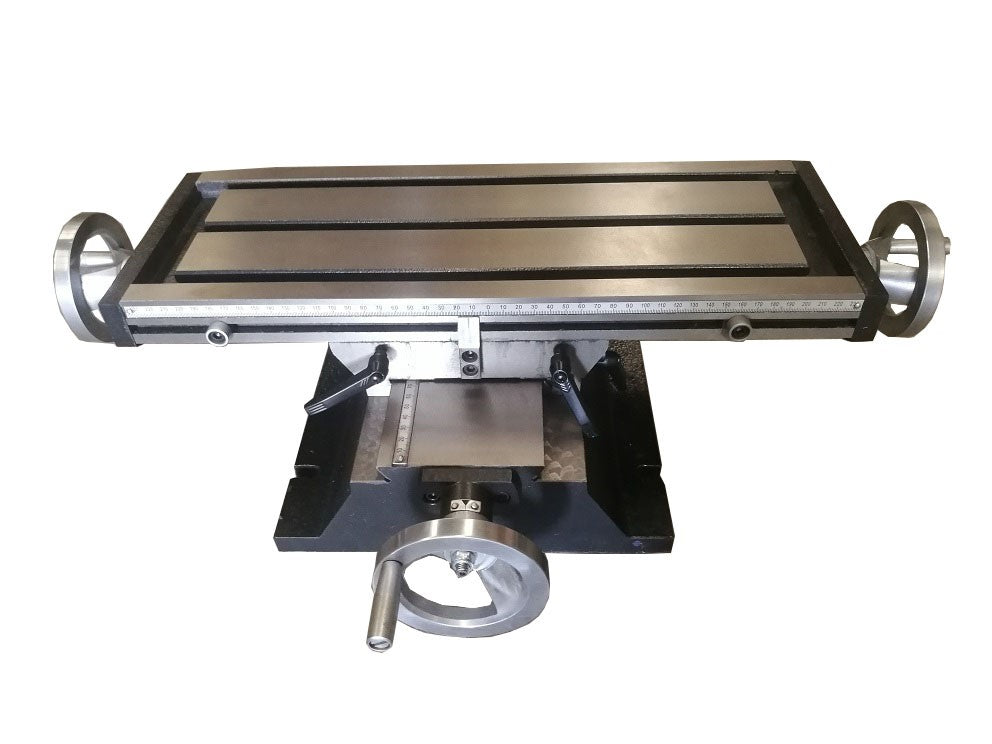

Introducing the Forestwest BM30277 Cross Slide Table, featuring a 500*180mm table for versatile applications. With a precise 280mm travel in the X-axis and 175mm in the Y-axis, this meticulously machined compound table ensures smooth and accurate movement. The precision model includes a dial-indexed handle with 0.05mm graduation (mounting holes needs drilling).
Ideal for repetitive multi-axis work, this table significantly reduces setup time. Its sturdy construction is tailored for heavy-duty tasks, providing reliability across various applications. Note that it can be used on BF-20 milling head, but mounting holes require drilling for compatibility. Elevate your machining precision and efficiency with the Forestwest BM30277 Cross Slide Table in your workshop.
BM30277/BF-20 Precision Cross Sliding Table Features:
Robust construction for heavy-duty tasks
Table size: 500*180mm with 0.05mm graduation
Precise and smooth sliding action, Slide Range X 280mm * Y 175mm
Ideal for use on both milling machines and lathes

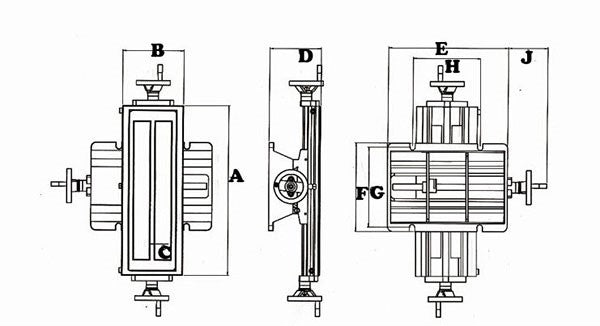

Specifications:
| Model | BM30277/BF-20 Precision Sliding Table |
|---|---|
| A | 500 mm |
| B | 180 mm |
| C | 12 mm |
| D | 151 mm |
| E | 355 mm |
| F | 260 mm |
| G | 235 mm |
| H | 200 mm |
| J | 116 mm |
| X-Travel | 280 mm |
| Y-Travel | 175 mm |
| Packing Size (LxWxH) | 650x435x160mm |
| N.W./G.W. | 35/40kg |
