Description

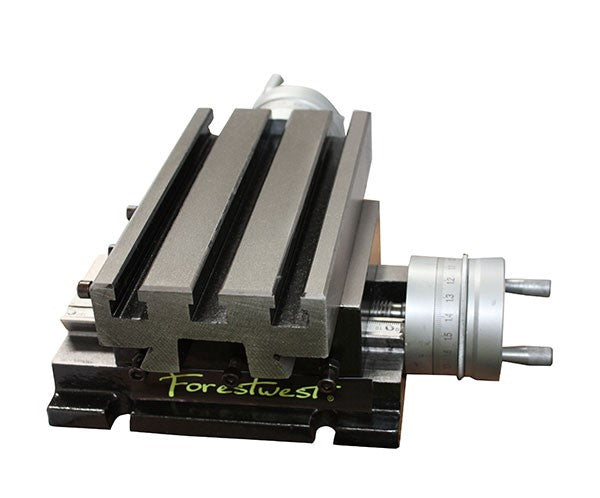

This Forestwest BM30201 Cross Slide Table has a 185*100mm table, with a 80mm travel in X axis and 70mm travel in Y axis. This compound table is well machined, and the travel is smooth and accurate, it enables every vice to slide at two directions. This is a precision model, the dial indexed handle in 0.01mm graduation.
This cross slide table is ideal for repetitive multi axis work, it will highly reduce the set up time. The construction is sturdy and suitable for heavy duty work.
185x100mm Compound Table Features:
Sturdy construction for heavy duty work
Precise and smooth sliding action, sliding range X 85mm* Y 70mm
A 185*100mm solid table

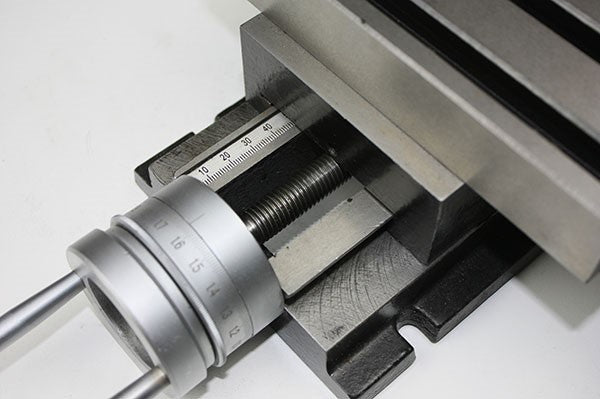

Accurate sliding, 0.01mm Graduation
Specifications:

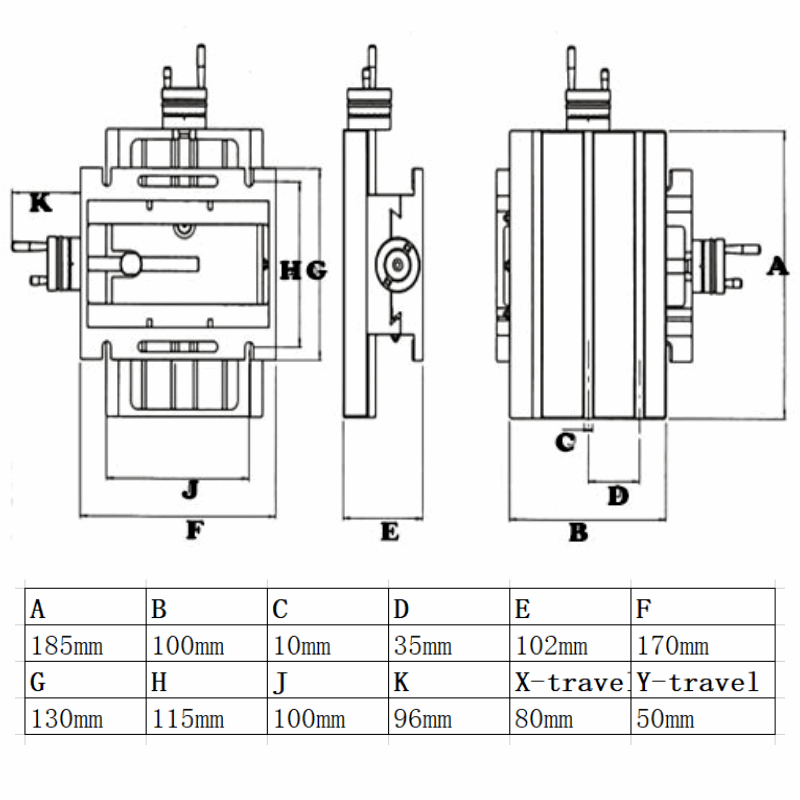

| Model | 185X100mm Cross Slide Table With Fixed Base BM30201 |
|---|---|
| Table size(mm) | 185*100 |
| X-travel(mm) | 85 |
| Y-travel(mm) | 70 |
| Packing size(mm) | 280*280*170 |
| Graduation(mm) | 0.01 |
| N.W./G.W(KG) | 10.5/11 |
