Description
Introducing the Forestwest BM30278 Cross Slide Table, equipped with a 700*180mm table for diverse applications. With a precise 480mm X-axis travel and 175mm Y-axis travel, this precisely machined compound table ensures smooth and accurate movements. The precision model is equipped with a dial-indexed handle featuring 0.05mm graduation.
Tailored for repetitive multi-axis tasks, this table significantly reduces setup time. Its robust construction is ideal for heavy-duty work, ensuring reliability across various applications. While compatible with BF-30 milling head, note that mounting holes require drilling for proper installation. Enhance your workshop's precision and efficiency with the Forestwest BM30278 Cross Slide Table.
BM30278/BF-30 Precision Cross Sliding Table Features:
Sturdy build for heavy-duty applications
Table dimensions: 700*180mm with 0.05mm graduation
Precision in sliding action, with a range of X 480mm * Y 175mm
Well-suited for use on milling machines and lathes
Specifications:

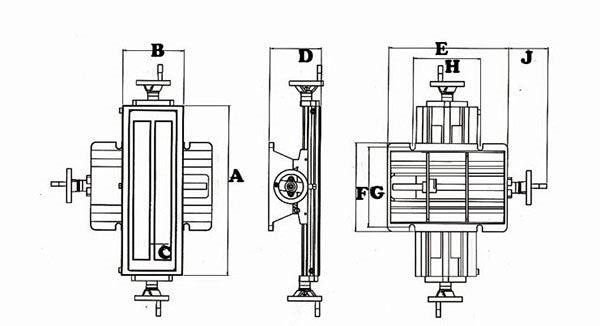

| Model | BM30278/BF-30 Precision Sliding Table |
|---|---|
| A | 700 mm |
| B | 180 mm |
| C | 12 mm |
| D | 151 mm |
| E | 355 mm |
| F | 277 mm |
| G | 245 mm |
| H | 220 mm |
| J | 116 mm |
| X-Travel | 480 mm |
| Y-Travel | 175 mm |
| Packing Size (LxWxH) | 860x460x230mm |
| N.W./G.W. | 65/70kg |
