Description
Introducing the Forestwest BM30273 Cross Slide Table, featuring a 400*120mm table for versatile applications. With a precise 220mm X-axis travel and 160mm Y-axis travel, this meticulously machined compound table ensures smooth and accurate movements. The precision model comes with a dial-indexed handle boasting 0.05mm graduation (mounting holes needs drilling).
Tailored for repetitive multi-axis tasks, this table significantly reduces setup time. Its sturdy construction is ideal for heavy-duty work, offering reliability across various applications. It can be used on BF-16 milling head, with the note that mounting holes require drilling for compatibility. Upgrade your workshop efficiency with the Forestwest BM30273 Cross Slide Table.
BM30272/BF-16 Precision Cross Sliding Table Features:
Robust construction for heavy-duty tasks
Table size: 400*120mm with 0.05mm graduation
Precise and smooth sliding action, with a range of X 220mm * Y 160mm
Ideal for use on both milling machines and lathes
Specifications:

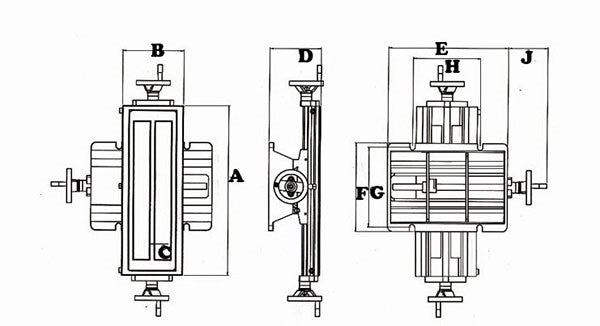

| Model | BM30273/BF-16 Precision Sliding Table |
|---|---|
| A | 400mm |
| B | 120mm |
| C | 10mm |
| D | 145mm |
| E | 282mm |
| F | 222mm |
| G | 200mm |
| H | 160mm |
| J | 110mm |
| X-travel | 220mm |
| Y-travel | 160mm |
| Packing Size (LxWxH) | 490x380x200 |
| N.W./G.W. | 23/27kg |
