Description

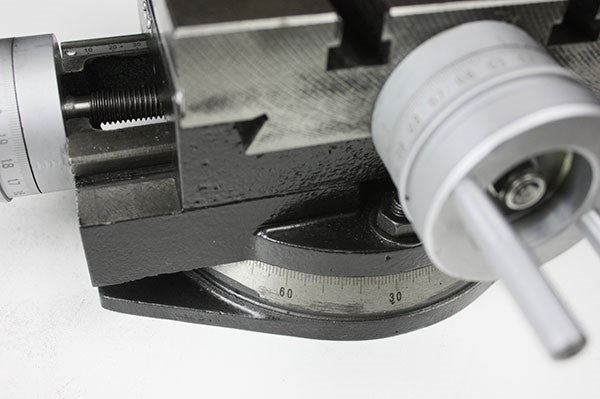

Introducing the Forestwest BM30206 Cross Slide Table, featuring a 225*175mm table for versatile applications. With a 105mm travel in the X-axis and 90mm in the Y-axis, this compound table boasts a swivel base for enhanced functionality. Precision-engineered with smooth and accurate travel, it enables dual-direction sliding for any vice.
This precision model is equipped with a dial-indexed handle offering 0.01mm graduation, ensuring precise adjustments. Ideal for repetitive multi-axis tasks, it significantly reduces setup time. The sturdy construction makes it suitable for heavy-duty work, providing reliability and stability in various applications. Upgrade your workshop with the Forestwest BM30206 Cross Slide Table for efficient and accurate machining.
BM30206 Cross Slide Table Features:
Robust construction for heavy-duty tasks
Precision and smooth sliding action with a range of X 105mm * Y 90mm
225*175mm solid table for stability

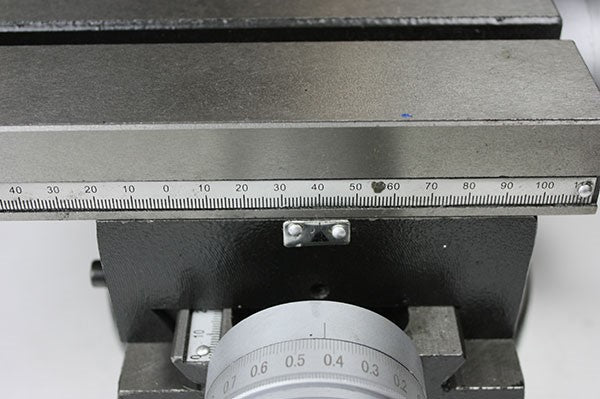

Accurate sliding with 0.01mm graduation
Specifications:
Model | 225X175mm Cross Sliding Table with Swivel Base |
|---|---|
| Table size(mm) | 225*175 |
| X-travel(mm) | 105 |
| Y-travel(mm) | 90 |
| Packing size(mm) ?? | 340*340*210 |
| Graduation(mm) | 0.01 |
| N.W./G.W. | 19/20kg |
