Description

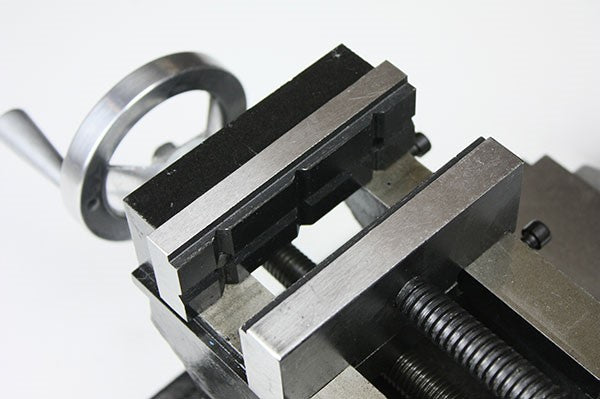

Meet the Forestwest BM30112 6" Precision Cross Slide Vice, a precision tool for accurate drilling and milling. With a 150mm jaw width and dual-axis capability, it travels 120mm on the X-axis and 100mm on the Y-axis. Meticulously machined for smooth travel and stability, this vice offers positive positioning in two coordinates, ensuring accurate movements. Elevate your machining precision with this ideal tool for a range of applications.
6" Precision Cross Slide Vice Features:
Dual-axis capability in both X and Y for versatile machining
Robust cast iron construction ensures durability
Meticulously machined for precision applications
148mm jaw opening with 0.05mm graduation
Smooth travel enhances overall accuracy in operations
Specifications:
| A | B | C | D | E | F |
|---|---|---|---|---|---|
| 270mm | 205mm | 170mm | 105mm | 245mm | 135mm |
| G | H | J | K | X Travel | Y Travel |
| 170mm | 40mm | 135mm | 150mm | 120mm | 100mm |
| Model | 6" Precision Cross Sliding Vice BM30112 |
|---|---|
| Jaw width | 150mm |
| Jaw opening | 148mm |
| Packing Size (LxWxH) | 510x400x240mm |
| N.W./G.W. | 15/16kg |
