Description

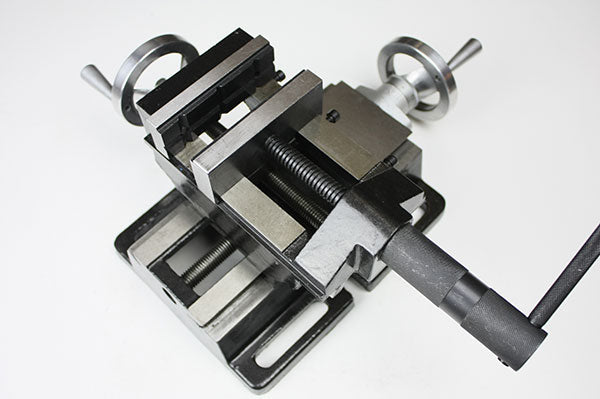

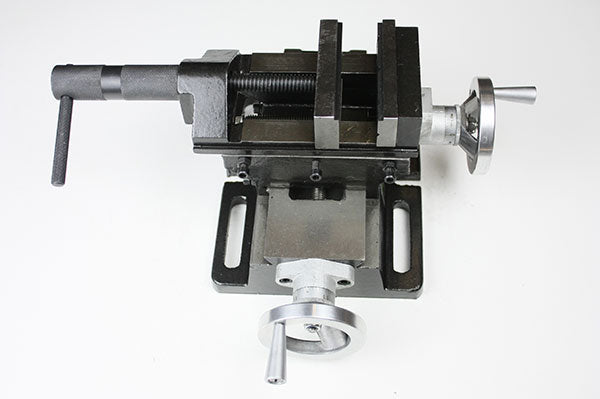

Introducing the Forestwest BM30110 4" Precision Cross Slide Vice – your precision tool for accurate drilling and milling. With a 100mm jaw width, this vice travels 110mm on the X-axis and 70mm on the Y-axis, ensuring smooth and precise movement. Its positive positioning in two coordinates makes it ideal for achieving accuracy in your projects. Upgrade your workshop with the Forestwest BM30110 for unmatched quality and precision. Order now to enhance your drilling and milling processes!
4" Precision Cross Slide Vice Features:
Dual-axis capability in X and Y for versatile machining
Sturdy cast iron construction ensures durability
Meticulously machined for precision use

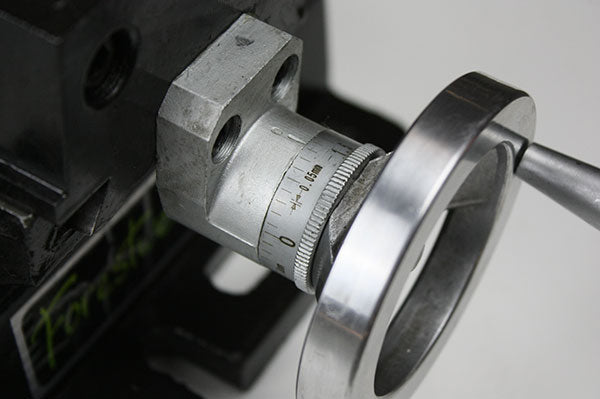

Jaw opens up to 98mm with 0.05mm graduation
Smooth travel enhances overall accuracy in applications
Specifications:
| A | B | C | D | E | F |
|---|---|---|---|---|---|
| 218mm | 175mm | 140mm | 105mm | 184mm | 100mm |
| G | H | J | K | X Travel | Y Travel |
| 156mm | 34mm | 85mm | 100mm | 110mm | 70mm |
| Model | 4" Precision Cross Sliding Vice BM30110 |
|---|---|
| Jaw width | 100 mm |
| Jaw opening | 98 mm |
| Packing Size (LxWxH) | 410x370x230 mm |
| N.W./G.W. | 10/11kg |
