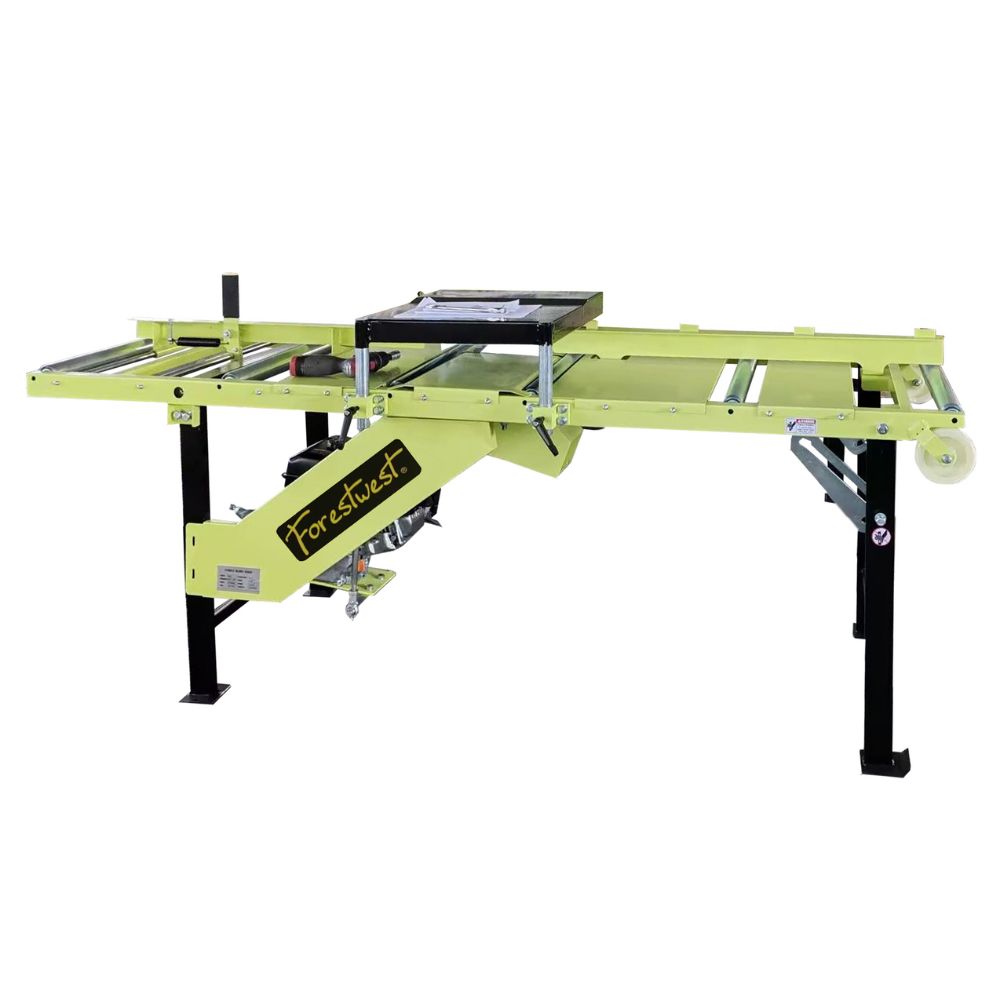

Boost your production by transforming flinches, sideboards, and slabs into precise, square-edged boards with Forestwest board edger. Designed for easy operation and built to last, Forestwest's cost-effective single-blade edger come equipped with durable carbide-tipped blades. Whether you’re looking to enhance an existing wood processing setup or expand your sawing business, Forestwest single blade board edgers ensure a smooth path to finished timber. They seamlessly integrate into current operations and offer a range of upgrade options to suit your needs.
Pull Handle: This single blade edger easily adjusts to any board width in 2" increments up to 12" wide
In-Feed Scale: scale on the in-feed allows operator to measure and edge boards accurately.

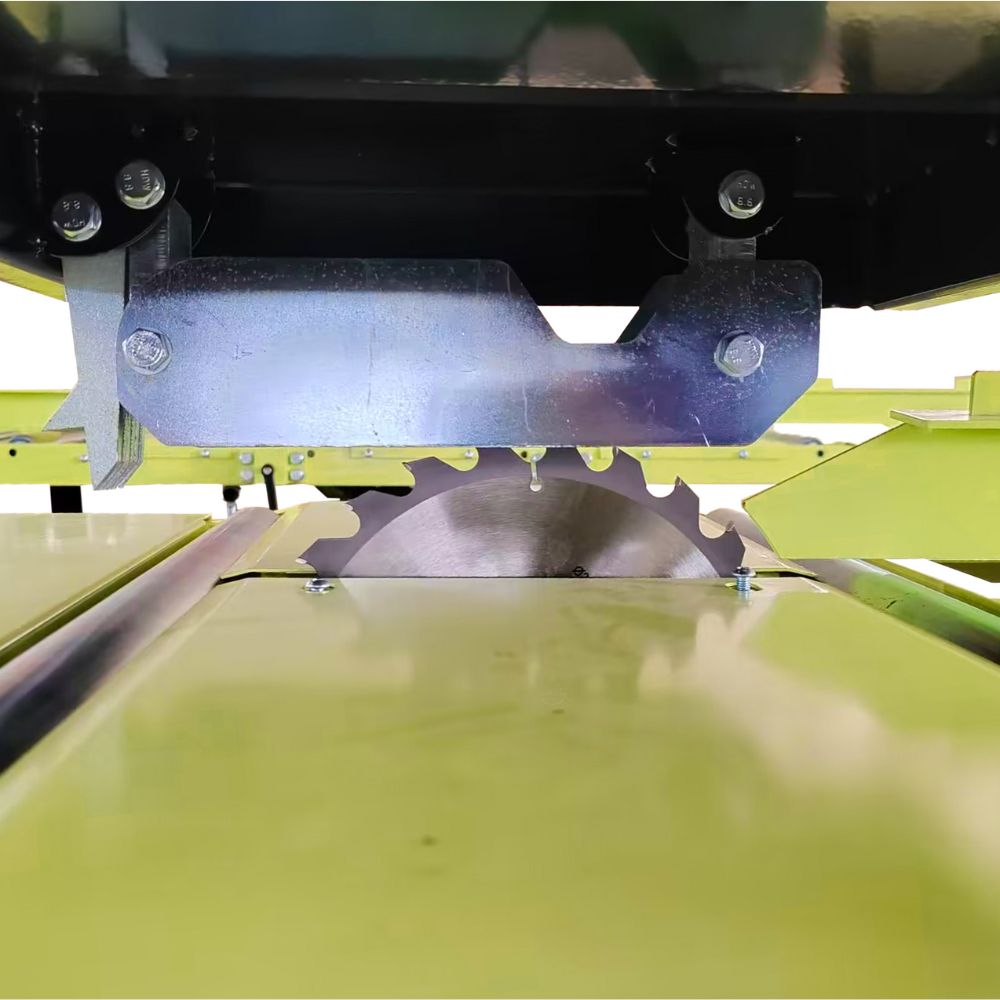

Carbide-Tipped Blade: The 10" carbide allow saw blade removes one side of the board with each pass.
Anti-Kickback Fingers: The anti-kickback fingers protect the operator by preventing boards from being kicked out of the edger.

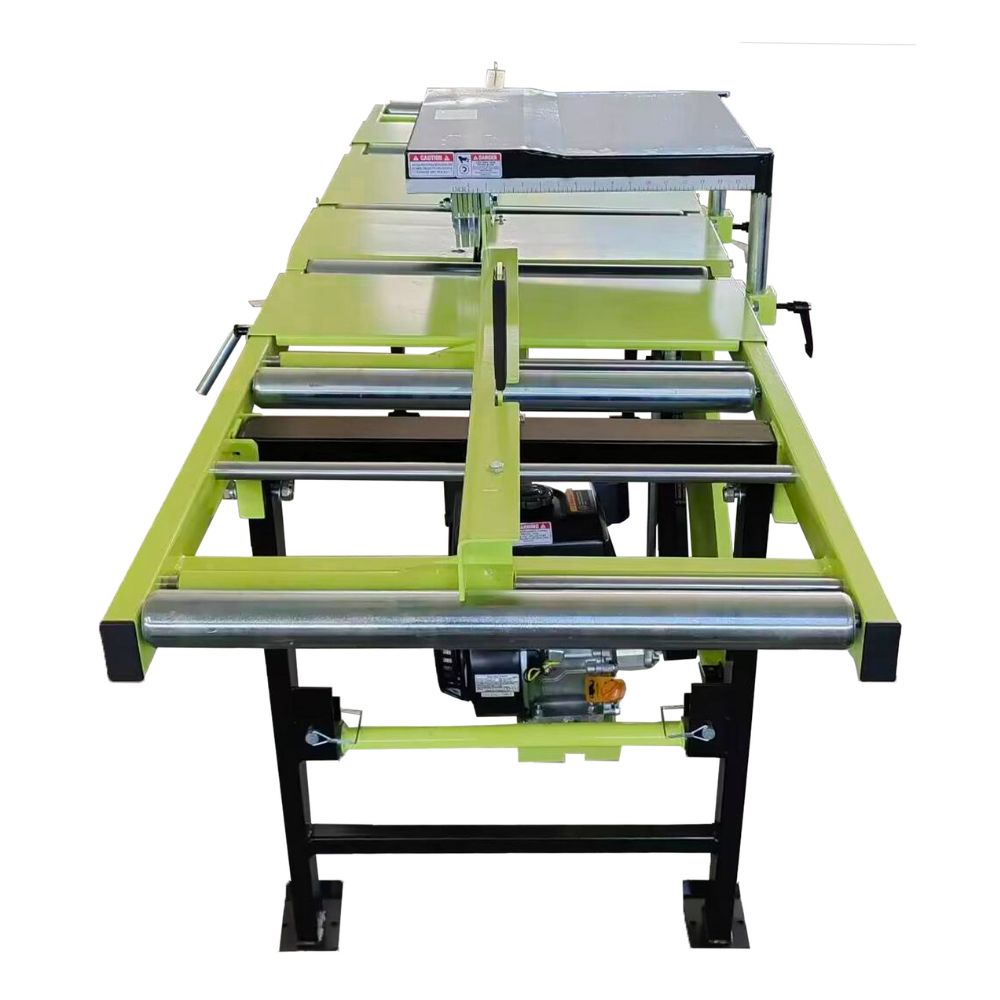

Heavy Duty Rollers: Multiple table rollers help remove material through the lumber edger.

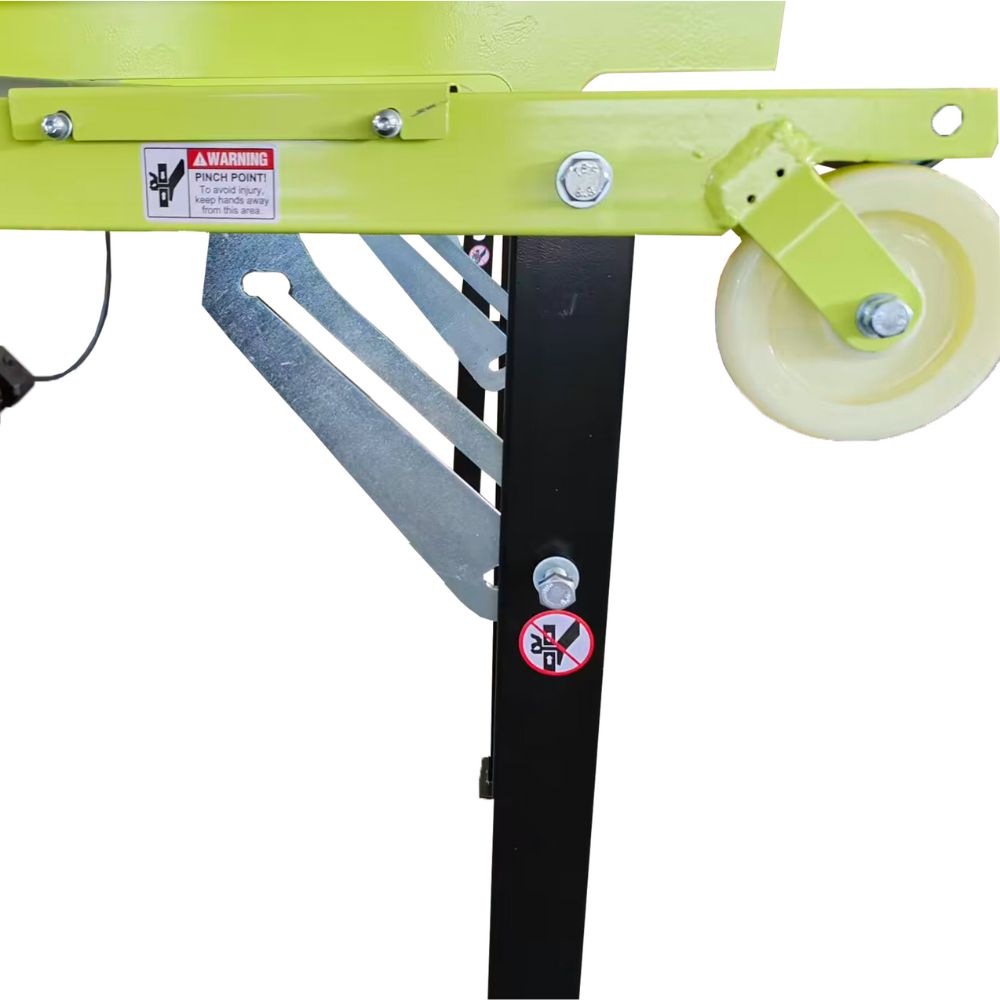

Easy to Store & Transport: The engine is removable, the legs of the discharge table can be folded flat for easy storage and transportation.
Model | ?Forestwest Single Blade Edger BM11150 |
---|---|
Engine Power | ?8.5hp RATO petrol engine |
Cutting Method | ?Drum Cut |
Max. Cutting Width | ?2"-12" (50-305mm) |
Max. Material Thickness | ?0.25"-2.25" (6.5-57mm) |
Blade Speed? | ?3750rpm |
Chipping Diameter | ?3" (76.2mm) |
Blade Type | ?10" (250mm) Carbide Alloy Saw Blade |
Blade Size | ?250x1.5mm? 24 Teeth |

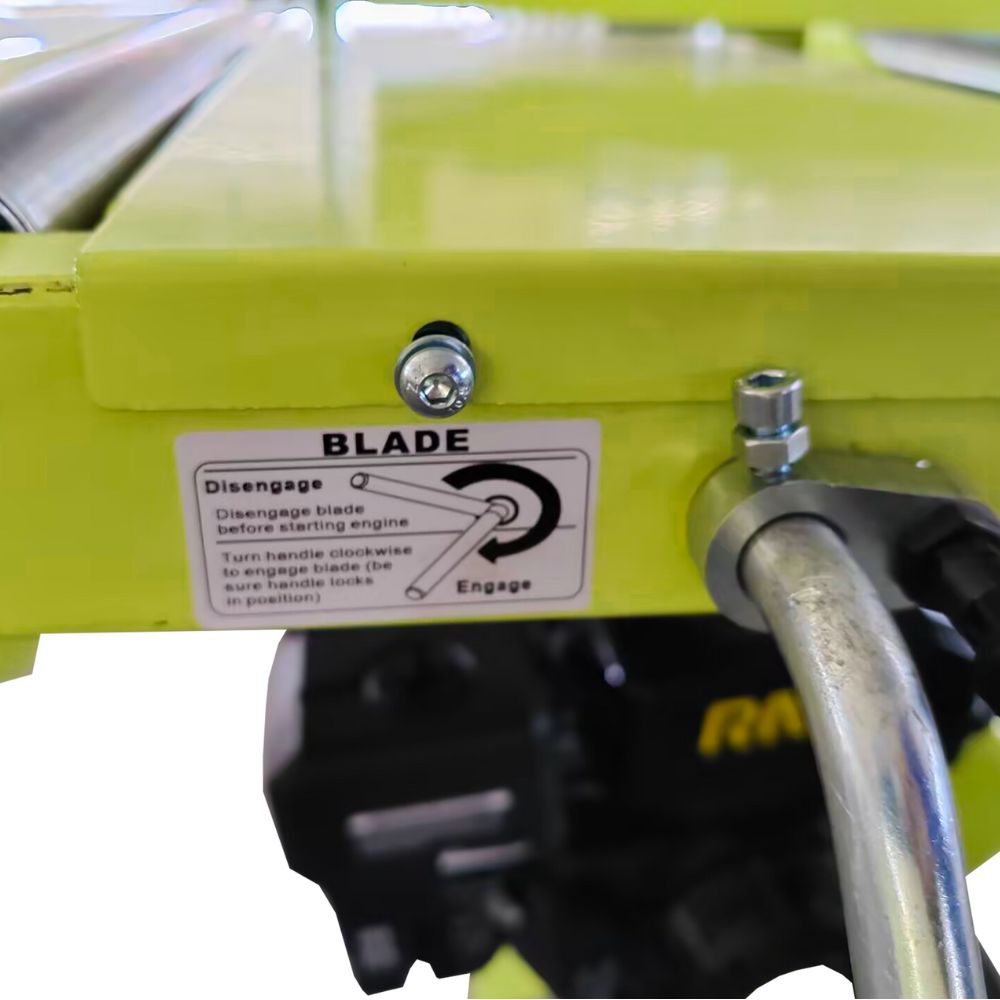

Blade Adjustment Method | ?Manual Lever |
Feed System | ?Manual Push Feed Rate - Variable |
Overall Size (LxWxH) | ?2228x878x1008mm |
Packing Size (LxWxH) | ?2330x830x570mm |
N.W./G.W. | ?125/172kg |
