Description

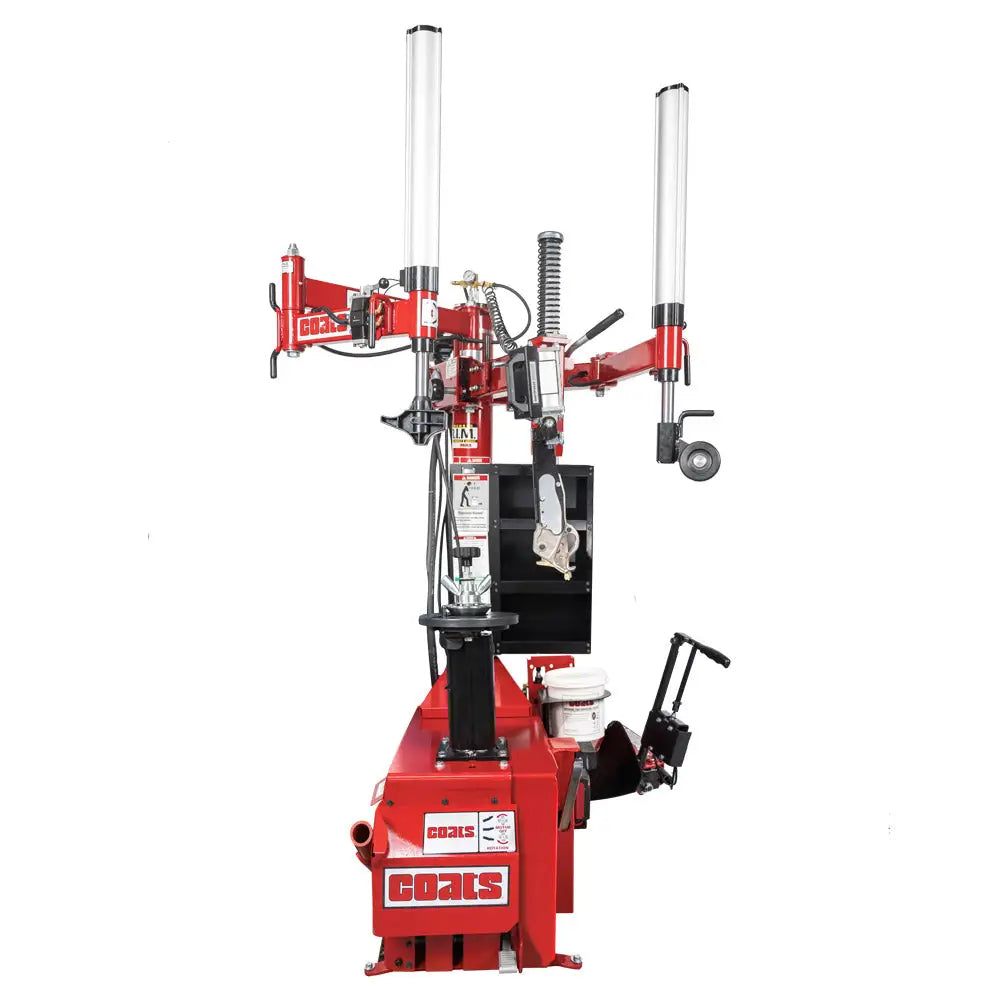

The Coats Model 90C Electric Center Clamp Tire Changer is the newest Coats tire changer family member and builds on its legacy of durability, reliability, and upgradeability. The 90C is an extension of the Coats swingarm tire changer you have always known and trusted with new features such as a robust center lock mechanism designed for ease of use and to minimize metal-to-metal contact. Plus, techs will love our leverless duckhead and auxiliary bead sealer that comes standard with the 90C and makes changing tires a breeze With only two moving parts, a rugged 220V, 2-horsepower motor, the 90C comes completely redesigned with new convenience features. These operator-focused features combine to give you the best tire changer platform. Operate your shop with confidence and the speed you expect from a swing arm tire changer, but with the added peace of mind of a center clamp.
Features:
- Center Locking Clamp Design: Easy to use center locking mechanism is fast, robust and helps prevent metal-to-metal contact with customer wheels
- Leverless Duckhead Mount/demount Tool: This feature acts as a helper device and eliminates traditional tire tools that can mar the surface due to application difficulty.
- Auxiliary Bead Sealer: The Coats Auxiliary Bead Sealer / ABS taps into the tire changers surge tank, providing additional bead seating volume. The ABS assists with sealing difficult applications.
- RoboRoller Powered Assist: The RoboRoller provides additional power when mounting difficult tires by preventing the bead from rolling back over the mount tool.
Specs:
Wheels Handled: Alloy and Steel for Car and Light TruckRim Diameter: 12in - 30in
Maximum Tire Diameter: 50in Max
Maximum Rim Width: 15in Max
Bead Loosening System: Hand Control - Power In/Out and Freeze
Wheel Clamping System: Center Clamp with Manual Lock
Mount/Demount Mechanism: Leverless Duckhead® Mount/Demount Tool - no tire bar necessary
Helper Devices:

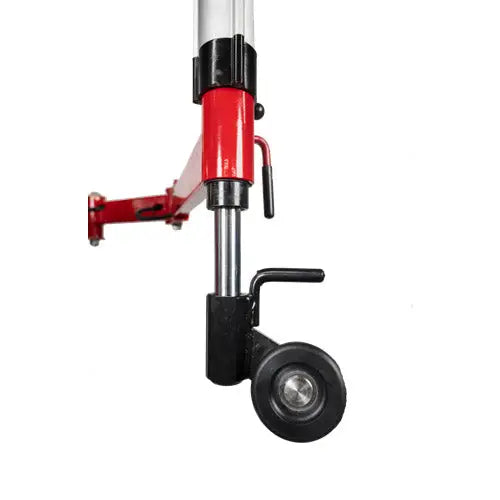

- Robo-Arm (18in of Automated Vertical Stroke)
- RoboRoller
Bead Seating Air Volume: 5.4 Gallons in Tower
Inflation Gauge: 0 - 60 psi
Air Supply Gauge: 0 - 300 psi
Electric Drive System: 2 HP Electric Motor, 220V, 60 Hz, 14amp

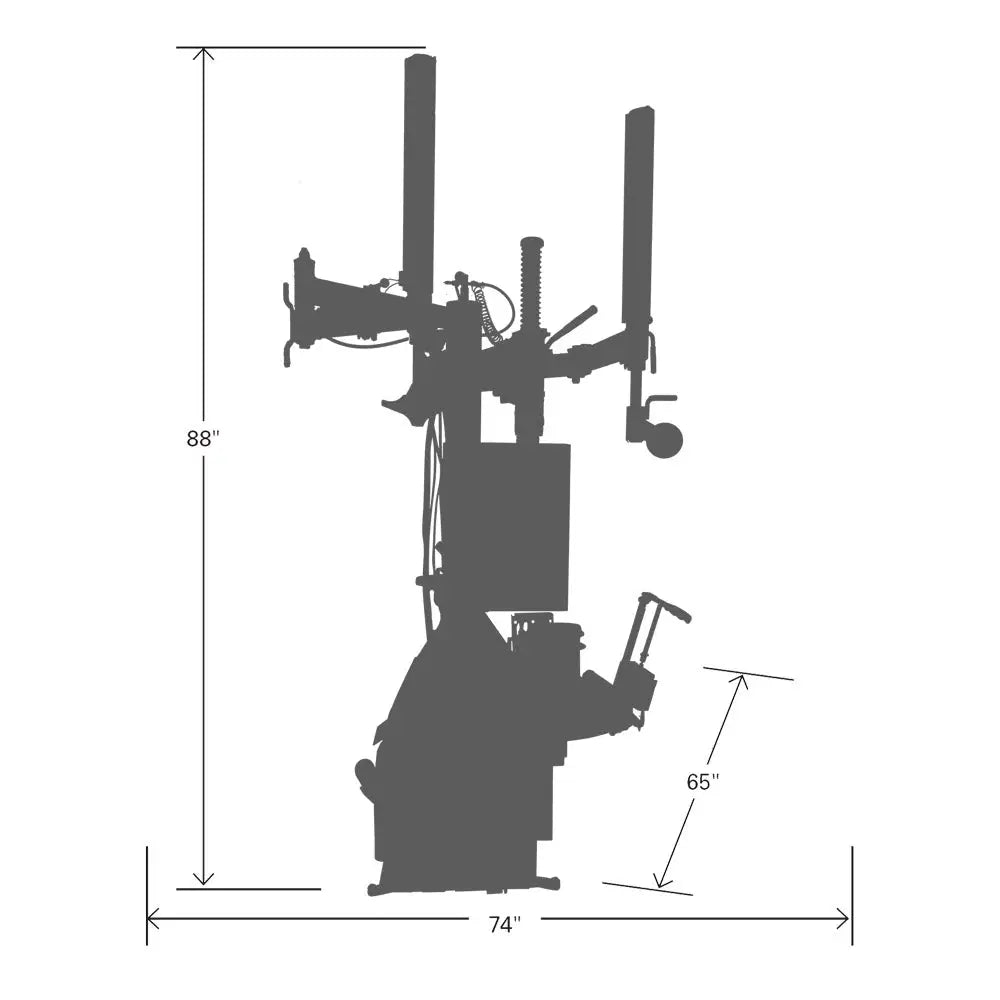

Footprint: 74inw x 88inh x 65ind
Ship Weight: 700 lbs.
Warranty: 3-Year Parts, 6 Months Labor
Ref No.:
90C-ELCTRIC
90CEHL-220V
80090CEH220
Includes:
1 x 85606545 - Auxiliary Bead Sealer (ABS)2 x 8183606 - Bead Loosener Shoe Socks - 2
1 x 85009048 - Paste Lube Bracket & Brush
2 x 83019057 - Protection Cone for Center Lock - 2
1 x 89233409 - Leverless Duckhead® mount/demount tool plastic inserts
1 x 8183710 - Paste Lube
1 x 83031335 - Anti-Rotation Extension Pin
1 x 83032475 - Light Truck Cone - 5.86in Center Bore
2 x 89231517 - Rubber Protection Pad - 2
1 x 85610105 - Premium Storage Cabinet
Optional Accessories
Point-of-Use Lift System
Manual Drop Center Tool
Tire Cage
Inflation System
Leverless Duckhead® Mount/demount Tool Plastic Inserts.
