Description

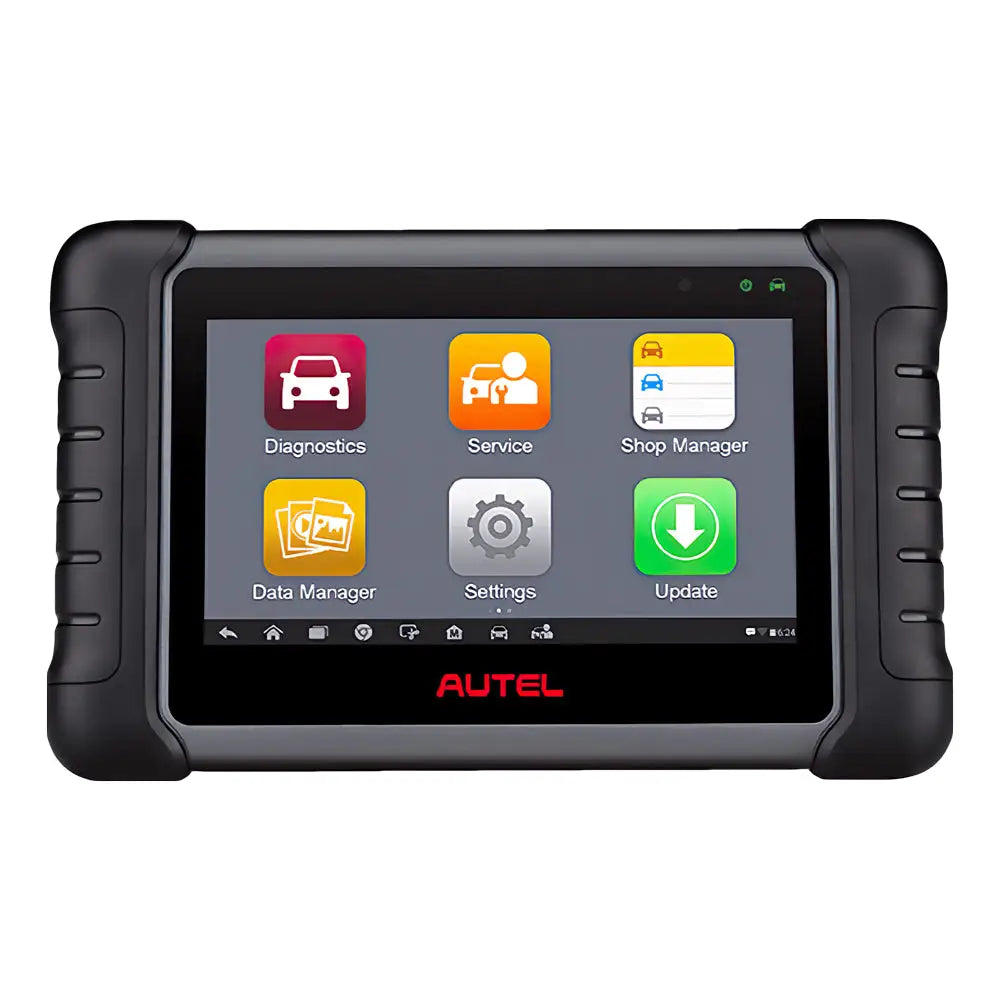

Upgrade your shop with the Autel MaxiCHECK MX808, a cutting-edge service and diagnostic scan tool. This versatile 7-inch touchscreen tablet, powered by a 1.5GHz quad-core processor, runs on Android 4.4.4. Equipped with a 32G hard drive and Autel MaxiSYS system suite software, it seamlessly accesses all available modules in various systems, performing AutoSCAN and AutoVIN (2006+). With 17 service functions, including ABS brake bleed, live data recording, and printable diagnostic reports, this tool is your go-to for comprehensive vehicle diagnostics. Easily updatable via Wi-Fi, it includes a 1-year tool warranty and 1 year of free software updates, making it a must-have for professionals seeking top-notch performance in their shop.
Features:
- AutoVIN 2006+: All modules, all systems for precise diagnostics.
- 17 Service Functions: Covers ABS brake bleed, emissions testing, more.
- Global Coverage: Handles Domestic, Asian, European vehicles (1996+).
- 7” Touchscreen: Responsive interface for user-friendly operation.
- Powerful Performance: 1.5GHz Quad-Core, 32GB Memory, 2GB RAM.
- Wi-Fi Updates: Stay current with easy, wireless software updates.
- Diesel Solutions: Reset emissions, perform DPF regeneration on select vehicles.
- Smart Maintenance: Set Inspection 1&2 service intervals with ease.
- OBDII Compatibility: Supports protocols and all 10 test modes.
- Enhanced Diagnostics: Utilize Mode 6 for advanced problem-solving.
- Live Data Handling: View, record, playback live and freeze frame data.
- TPMS Support: Relearn sensor ID efficiently with activation tool.
- MaxiSYS Suite: Shop Manager applications for comprehensive management.
- Warranty & Updates: 1-year warranty, 1 year of free updates.
- Extended Coverage: Eligible for Extended TCP coverage for added assurance.
- Cord Included: Comes with OBDII cord for immediate use.
- Long Battery Life: 5,000 mAh battery ensures prolonged functionality.
- Integrated Camera: 8MP camera with LED light for visual documentation.
- File Flexibility: Save files with a Micro SD Card (32G max., not included).
Specs:
Recommended Use: IndoorOperating System: Android 4.4.4, KitKat
Processor: Cortex-A9 processor(1.5 GHz)
Memory: 64GB
Display: 7-inch LCD capacitive touchscreen with 1024×600 resolution
Connectivity
- Mini USB 2.0
- USB2.0
- Wi-Fi
- HDMI Type A
- Micro SD card slot(supports up to 32GB)
Sensors: Light sensor for brightness auto-adjust
Audio Output: buzzer
Power and Battery
- 3.7 V/5000 mAh lithium-polymer battery
- Charges via 5 VDC power supply
Tested Battery Life: Around 7 hours of continuous use
Battery Charging Input: 5V/1.5A
Power Consumption: 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V
Operating Temp: -10to60°C(14to140°F)
Storage Temp: -20to70°C(-4to158°F)
Operating Humidity: 5%-95%non-condensing
Dimensions(WXHXD): 270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4)
Net Weight: 885g(2.31|b.)
Protocols: ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code, SAE-J1850 VPW,SAE-J1850PWM, ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN) SAE J2610,GM UART UART Echo Byte Protocol Honda Diag-H Protocol,TP2.0,TP1.6
Similar Products
MAXITPMS TS608
MX808TS
MAXIDAS DS808
MAXIDAS DS808TS
Ref Name
AutoVIN Diagnostic Tool
MaxiCHECK MX808 Scanner
All System Service Tablet
Application:
Auto RepairDiagnostics
Maintenance
Emissions Test
Brake Service
Shop Efficiency
Vehicle Inspection
