Description

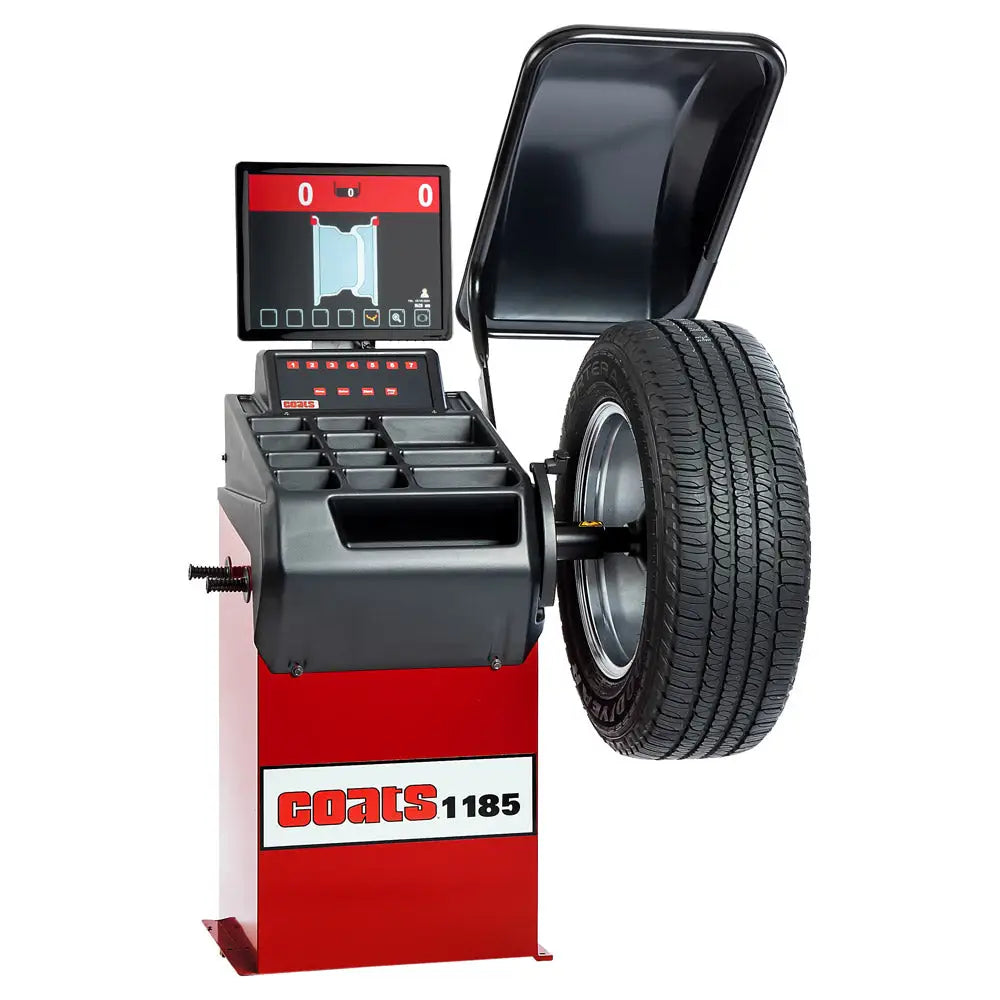

The Coats 1185 will help take your shop to the next level. This unit is designed for light to medium-duty environments but offers features you will find on much larger, more elaborate machines.

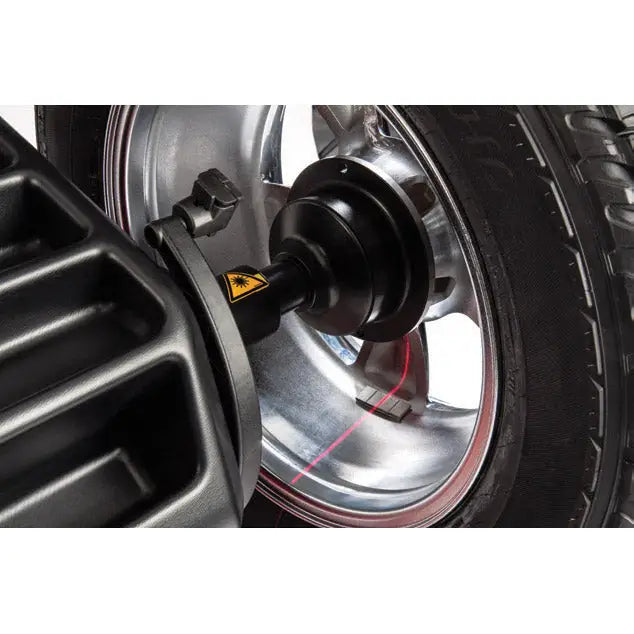

Laser Line Weight Placement Guidance:
An easily visible laser line helps operators place weights right where they are needed.

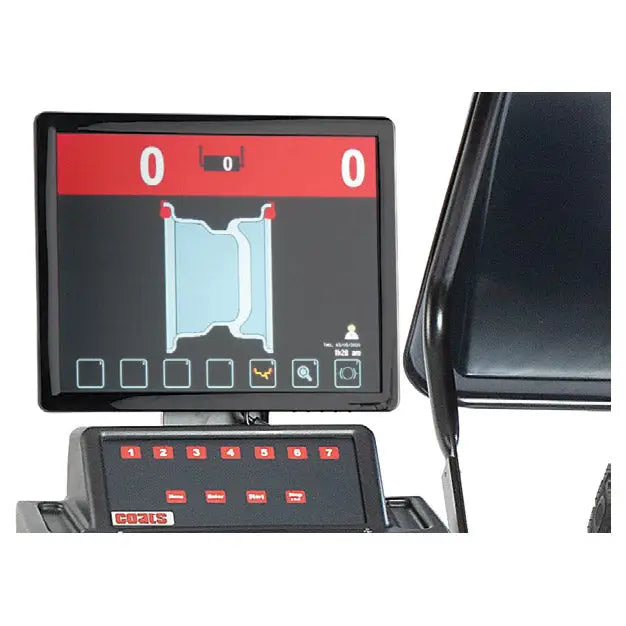

Color LCD Display:
Vivid color display alerts the operator to the imbalance location and identifies the optimal tape on or clip weight location.
Live Position Indexing Guidance:
Audio and graphics-based notifications alert operators when weight placement is needed.
Features:
- Color LCD Video Display
- Bottom Dead Center Laser
- Live Position Indexing Navigation
- 38in Max Tire Diameter
Specs:
Balancing Modes: 5Tire Diameter: Up to 38in
Rim Diameter: 10in - 30in
Rim Width: 2in - 16in
Shaft Diameter: 40 mm
Maximum Tire Weight: 130 lbs.
Display / User Interface: LCD video display / SoftTouch key input
Automatic Data Entry: A & D Arm
Hidden Weight Mode: Yes
Cones Included: Cones (A,B,C & D)
Laser: 6 O'clock Bottom Center
Braking System: Automatic
Auto Start: On Hood Closed
Balancing Speed: <130 rpm
Imbalance Resolution: 0.1 oz
Power Requirements: 110V, 1 Ph, 50/60 Hz, 3 amp
Dimensions: 36.96in x 39.6in x 52.32in
Warranty Parts: 1 Year
Warranty Labor: 6 Months
Shipping Weight: 242 lbs.
Includes:
1 x 8112098 Small A Cone1 x 8112099 Medium B Cone
1 x 8112100 Large C Cone
1 x 8112101 Light Truck D Cone
1 x 8113175 Premium Wheel Weight Hammer
1 x 8309011 Calipers
1 x 8112103 Hub Nut
1 x 8112106 Small Pressure Drum w/Ring
1 x 8112421 Short Cone
Optional:
85606394 - Light Truck Back Cone Spacer; 40mm
8113795 - In-between Cone Set; 4pc; Range (1.62" - 3.45")
8113277C - Light Truck Cone Kit
85009998 - 2-Jaw Slide Nut Kit (Nut + Drum)
85610104 - Adjustable Pin Plates (Set of 3)
85609499 - Double Sided Low Angle Collets; 6pc; Range (2.04" - 5.20")
